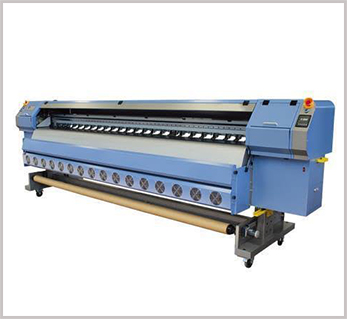

C8 SOLVENT PRINTER

C8-512i/512
Improve Function Configuration Compared with C4-512i

Secondary ink tank and printhead plate heating system, it fits for low temperature in winter.
Standard equipped intelligent infrared heating system to speed up picture drying.
Standard equipped auto collecting system.
Three levels ink tank, printing more stable.
Printhead anti-crash system to prevent printhead crash onto media during printing.
512i series printer adopts 400w Panasonic motor to ensure stable and fast printing,

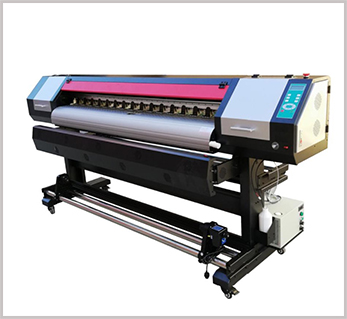

ECO SOLVENT MACHINE

Model	WDL 3200
Print head	xp600/dx5/dx7/4720
Machine print width (m)	1.5/1.8/1.9/2.2/2.6/3.2
Single head 720720dip/4pass 720720dip/6pass 720720dip/8pass Double head 720720dip/4pass 720720dip/6pass 720720dip/8pass	20m²/h 17m²/h 15m²/h 35m²/h 27m²/h 23m²/h
Compatible ink	Water-based ink /Eco weak solvent ink/thermal sublimation ink/UV ink, etc
Print type	PP Sythentic paper/Backlit/Photographic/Sublimation paper/Banner/Leather and so on
Heating system	Front/Back（can heat them separately）
Drying system	Infrared Ray drying system
Paper system	Double motor automatic paper receiving system
Guide Rail	Japan THK high grade guide rail
Print interface	1000 Mbit/s
Work environment( C )	15-30
Relative humidity(%)	40-60
RIP software	Maintop/photprint
Computer system	WinXP/Win7
Power(w)	800
Packing size	3.2 4900x1100x1580
Machine weight(KG)	600

Features
1.Heavy-Duty Deluxe extended frame
2.High Mechanical Strength and precision
3.The standard infrared heating

Model	EPSON Model: EP1803
Configuration	Large Aluminum Beam 2910mm
RIP Softtware	Ultraprint/Maintop, Photoprint/Onyx (Optional)/wasatach/neostampa
Guid rail	THK quiet high precision guid rail with Doulbe guid block
Scan Motor	Brand motor 180W
Feed Motor	Brand step motor
Drag Chain	Germany IGUS Drag Chain
Drag Chain Cable	Germany IGUS Power cable
Senros	Omrons original sensors package
Relay	Omron original relays
Transmission System	Italy ELATECH quiet Belt
Linear Guide	Double Japanese THK Linear Guide
Pump	peristaltic pump
Printhead plate	High precision full alumunim head plate
Dryer System	Infrared Fryer & Fan Stystem with AC voltage regulator module
Printer Body	Heavy Duty Luxure Type 420kgs
Platform	Teflon High Precision Printing Platform
Light	LED Light
Cleaning System	Luxury high precision full alumumim cleaning station with Silicone cap top
Printhead Moisture	Unique Printhead Protection Stack, with omron sensors
Feed-up Syetem	Strong loading system and 50kgs double motor take up system/ dancing roller system
Printing Platform	1.85m media width
